T30 Service Body
A purpose-built aluminium service body for light commercial trucks. Serious storage capacity, a professional finish and a fully configurable internal layout — ready to work from day one.
Request Pricing
ISUZU NLR
HINO 616
ISUZU NLR
HINO 616
Specifications
Body
- High grade 3mm aluminium construction
- Front tool box: 1950 x 800 x 1150mm
- LHS tool box: 2400 x 600 x 900mm
- RHS tool box: 2400 x 600 x 900mm
- 2 x under body rear tool boxes with full aluminium skirts
- Bifold tool box doors
- Powder coated finish
Inclusions
- 6 x 1800kg HD tie down points
- Large trundle draw 2200mm
- Raised roof rack system
- LED storage lighting
- Central locking on all above deck boxes
- LED Maxilamp tail lights
- Customised internal layout options
- Vehicle specific installation hardware
360° View
Driver Side Box Layout
Configure the driver side storage to suit your trade.
Layout 1 — Shelf Set
2 x 1266mm shelves
Layout 2 — 2x Shelf Sets
2 x 1028mm & 2 x 1298mm shelves

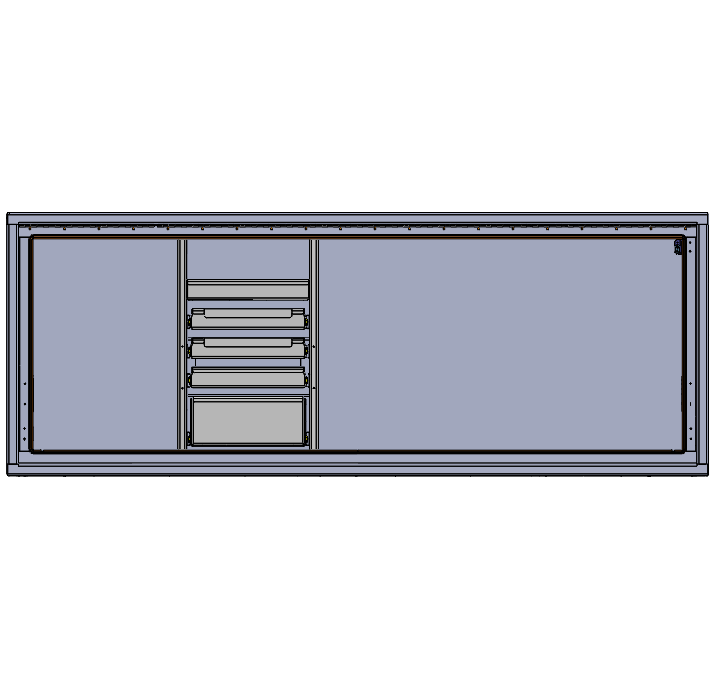

Layout 3 — Drawer Set
1 shelf, 2 standard drawers, 2 carry case drawers

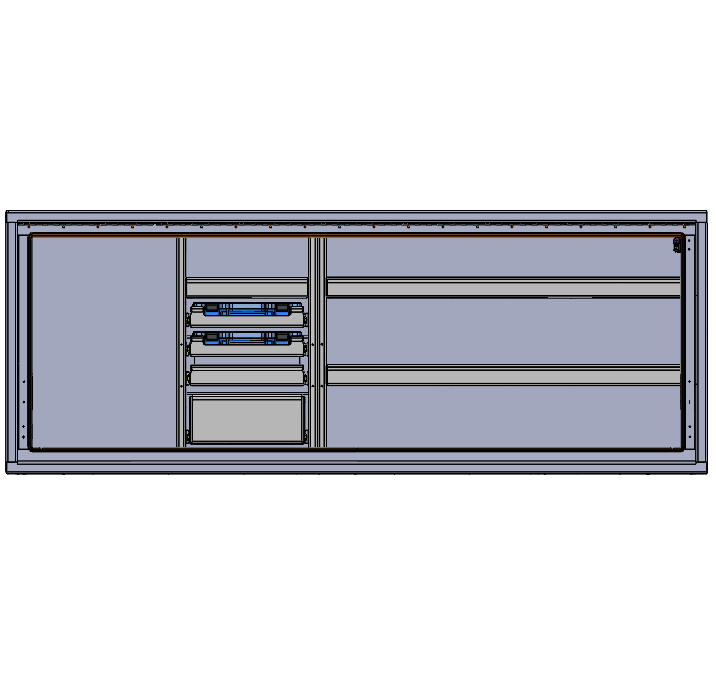

Layout 4 — Drawer & Shelf Set
1 shelf, 2 carry case drawers, 1 standard drawer, 1 deep drawer, 2 long shelves

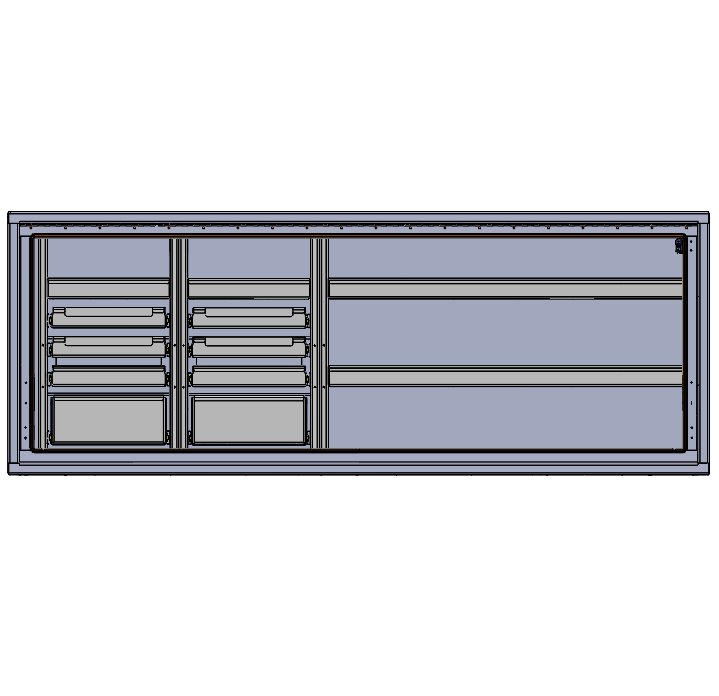

Layout 5 — 2x Drawer & Shelf Set
2 drawer units, 2 shelves, 2 standard drawers, 4 carry case drawers, 2 long shelves
Passenger Side Box Layout
Match the passenger side to your workflow.
Layout 1 — Shelf Set
2 x 1266mm shelves
Layout 2 — 2x Shelf Sets
2 x 1028mm & 2 x 1298mm shelves
Layout 3 — Drawer Set
1 shelf, 2 standard drawers, 2 carry case drawers
Layout 4 — Drawer & Shelf Set
1 shelf, 2 carry case drawers, 1 standard drawer, 1 deep drawer, 2 long shelves
Layout 5 — 2x Drawer & Shelf Set
2 drawer units, 2 shelves, 2 standard drawers, 4 carry case drawers, 2 long shelves
Optional Extras
Towbar — ISUZU
3500kg, 50mm ball, Redarc Tow Pro Elite brake controller

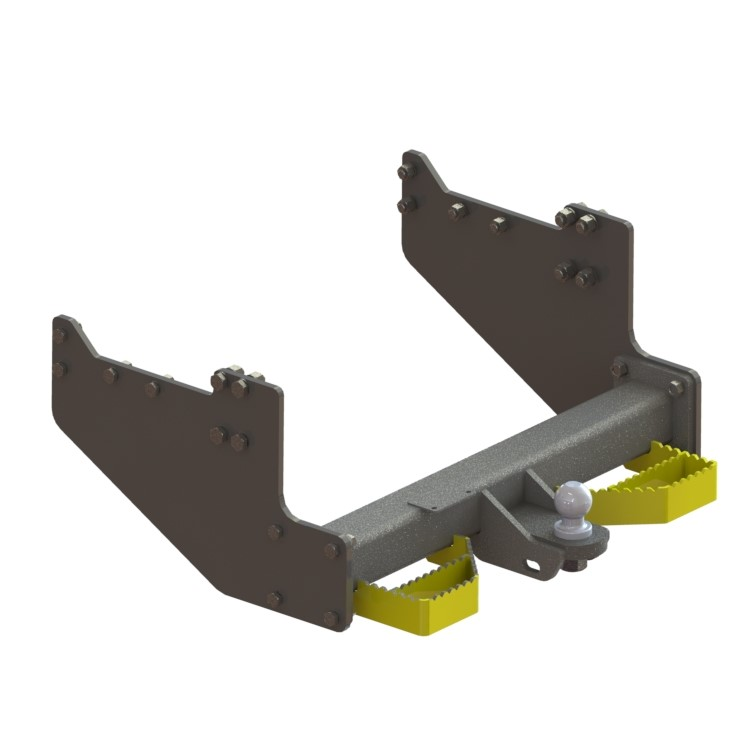

Towbar — HINO
3500kg, 50mm ball, 7-pin socket, Redarc brake controller

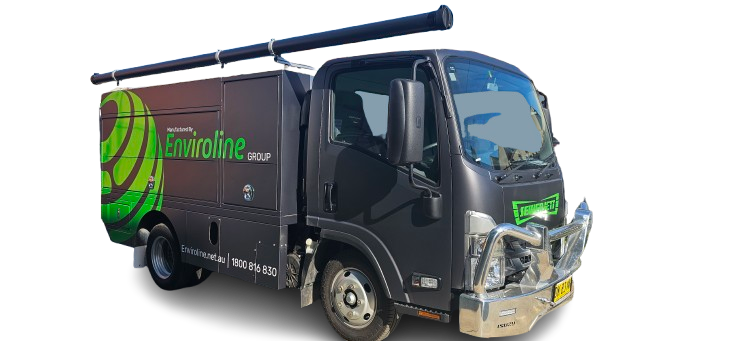

Pipe Carrier 4.6m
100mm diameter, lockable steel key lock barrel

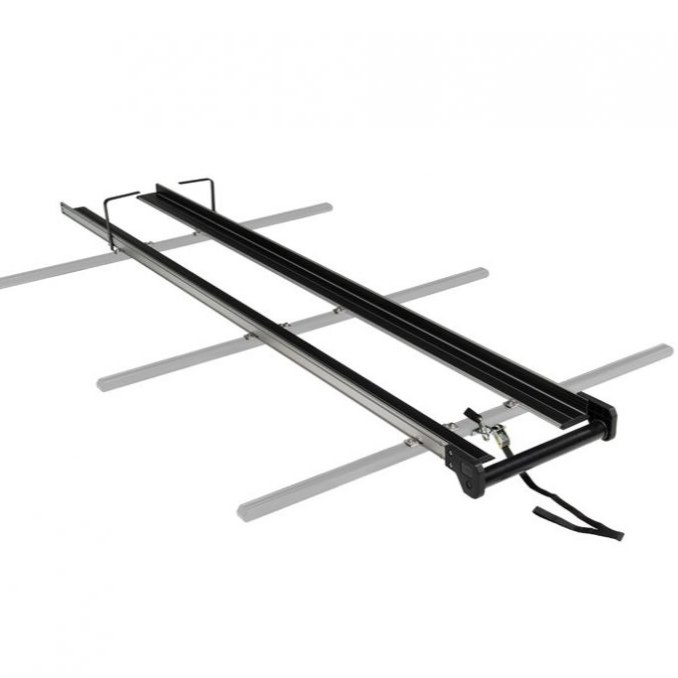

Extension Ladder Rack 3m
For step/extension ladder 3m, with ladder roller, fitted
